Architectural Working Drawings & BIM Documentation

Project overview

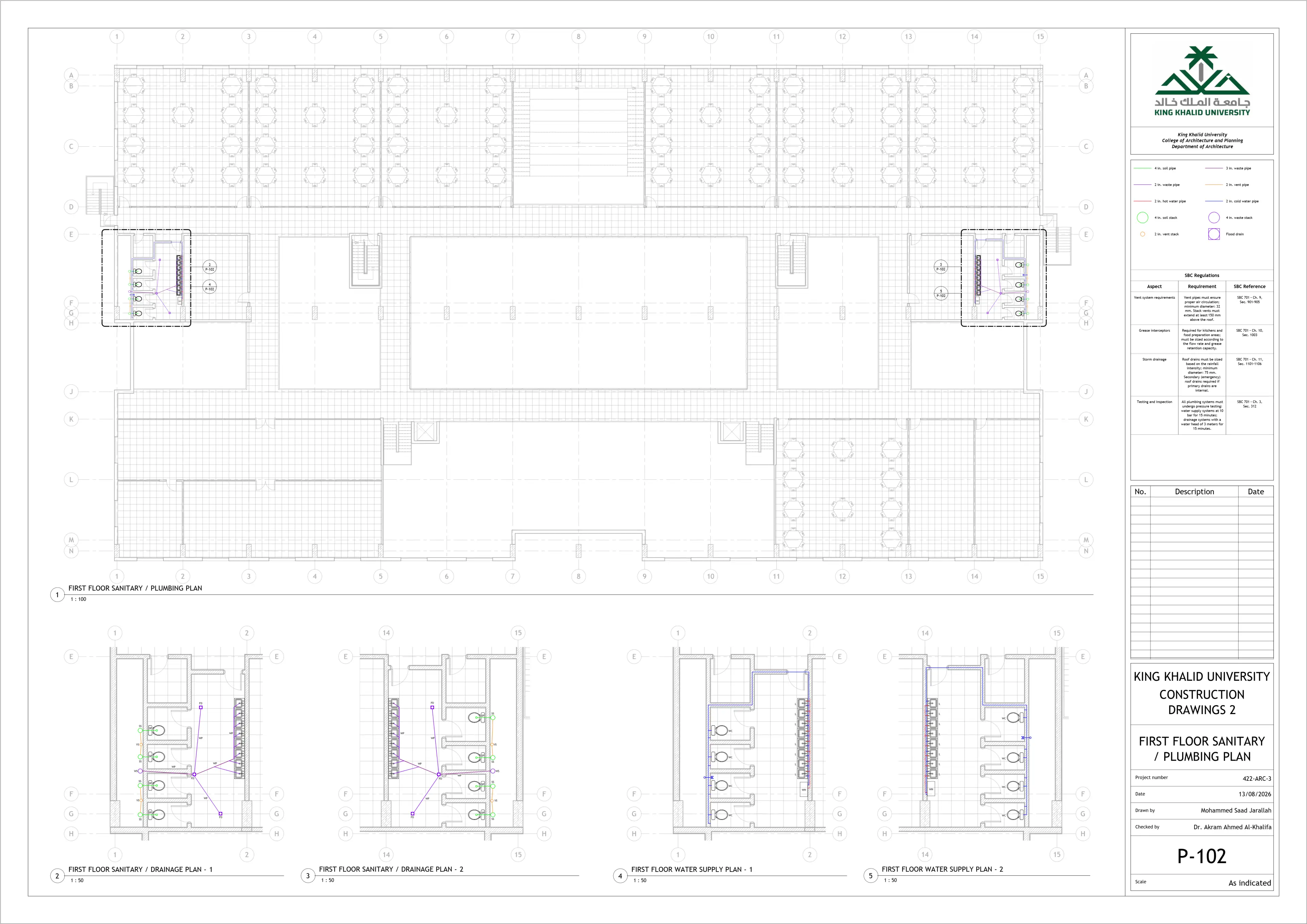

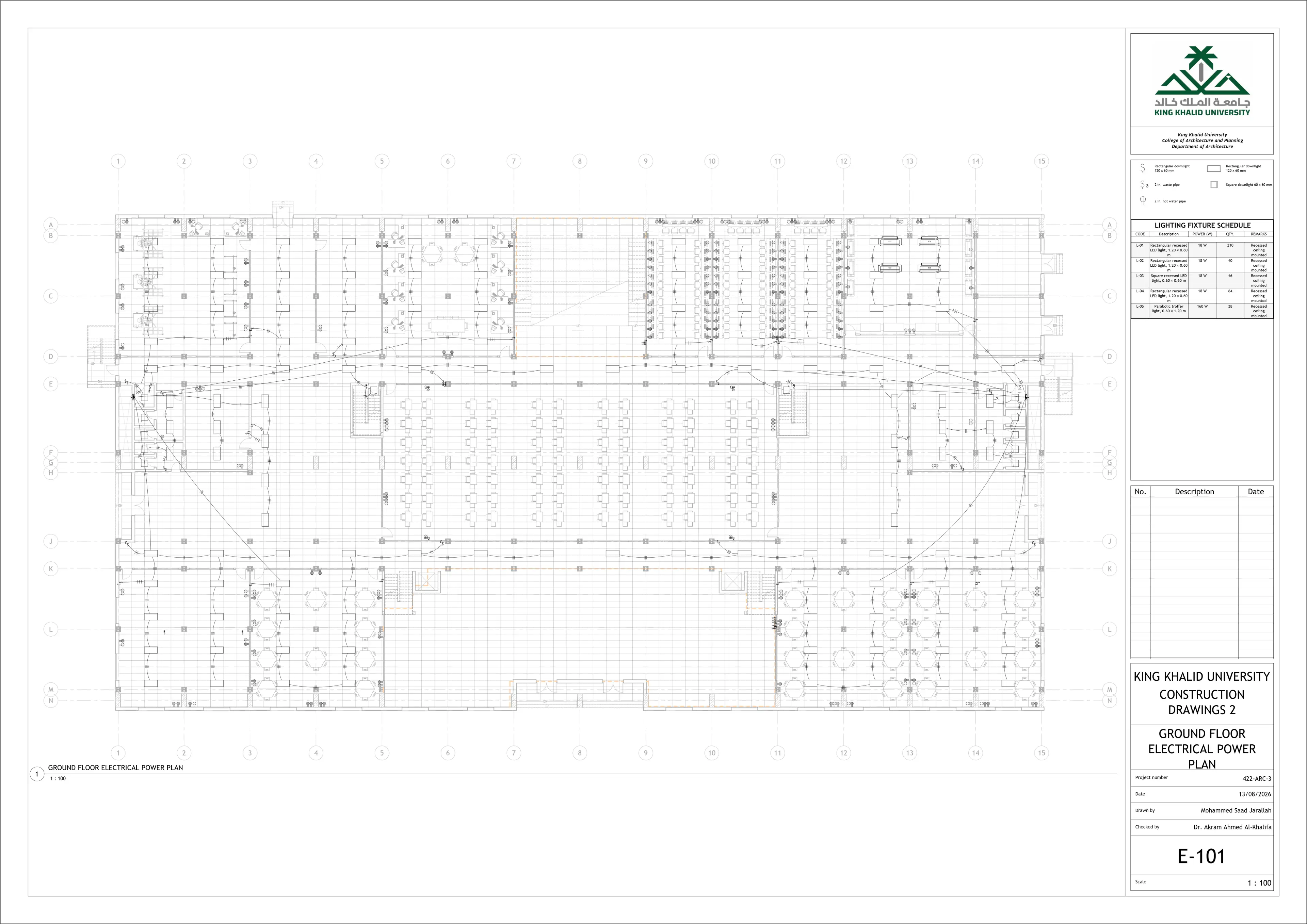

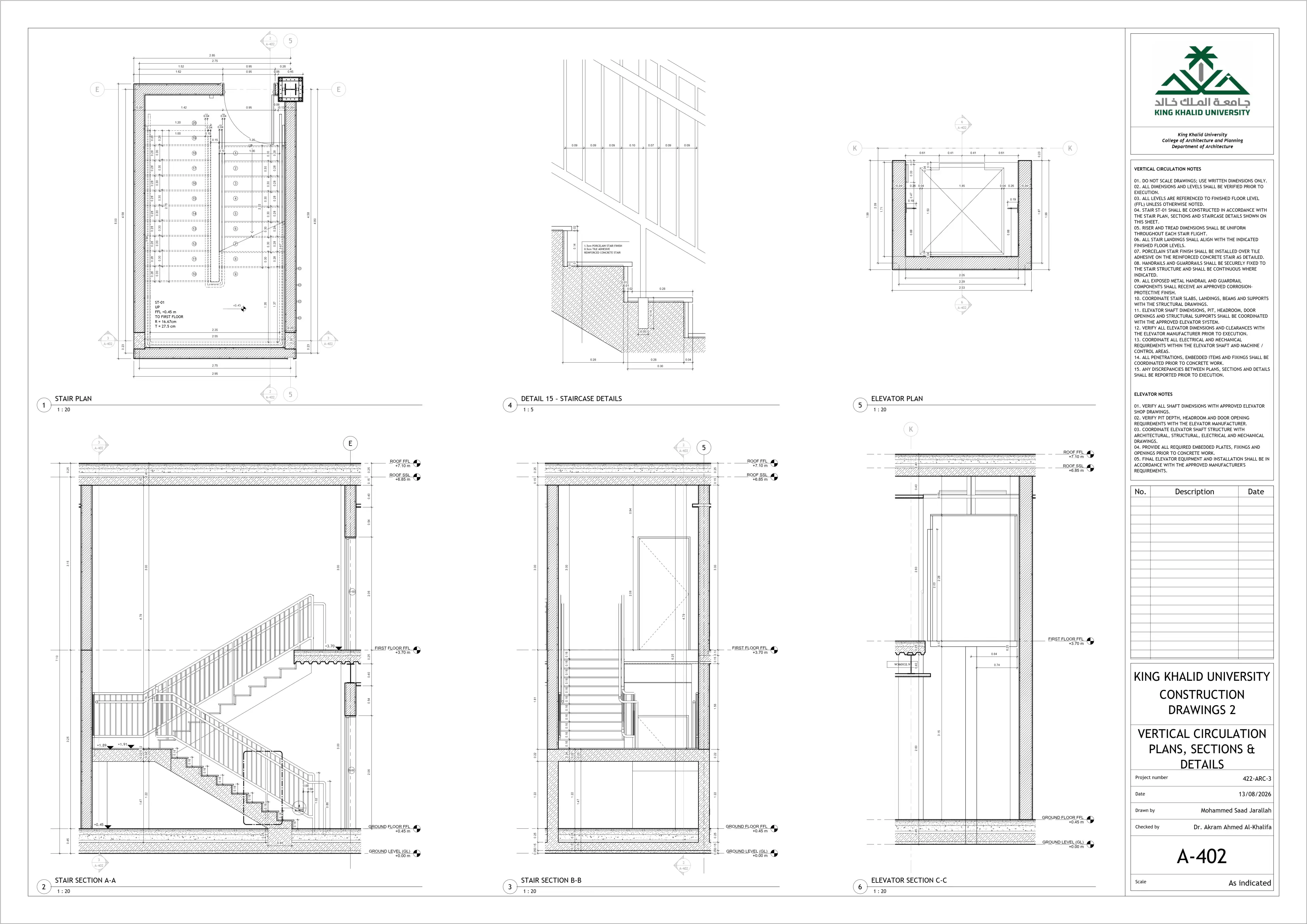

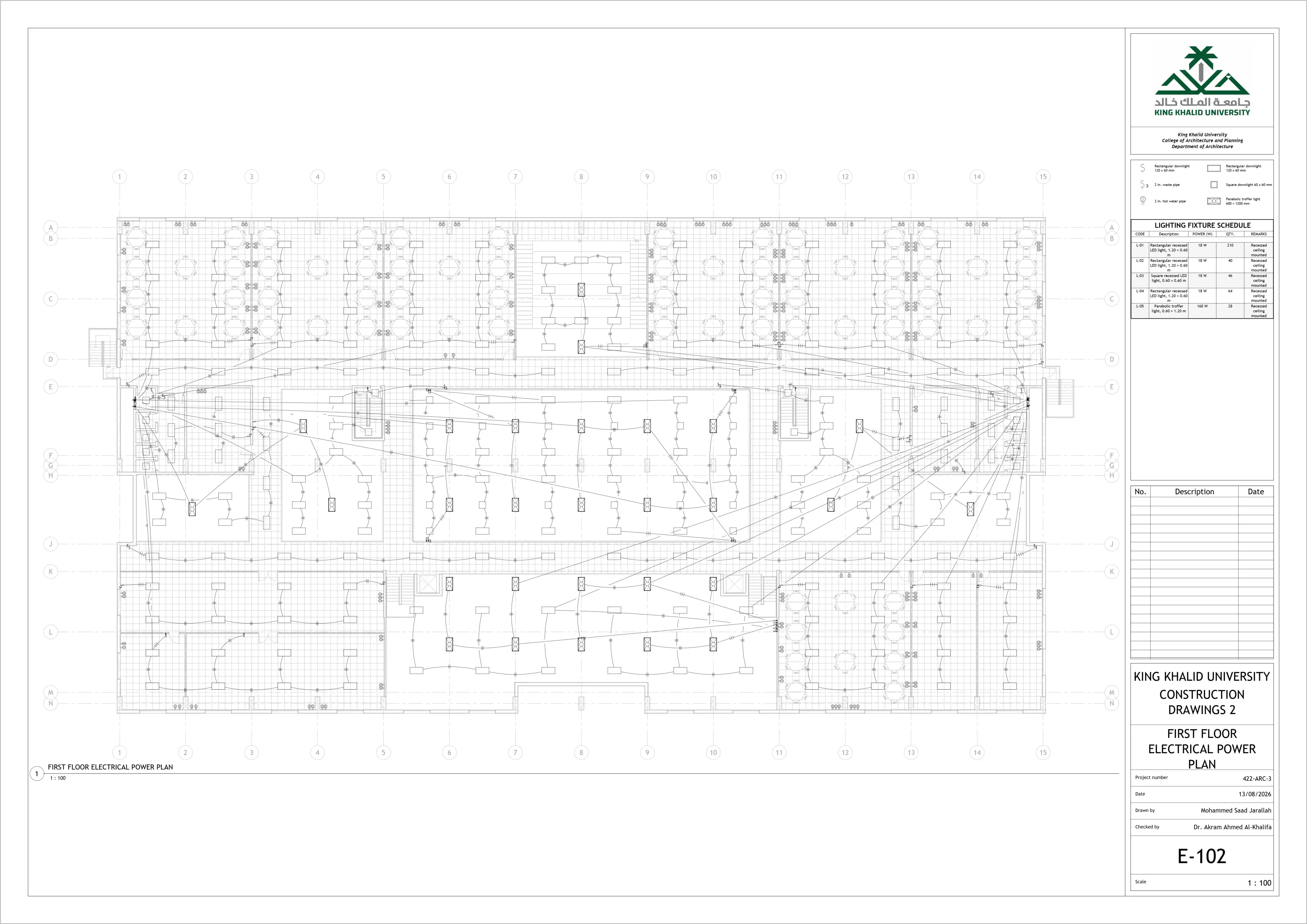

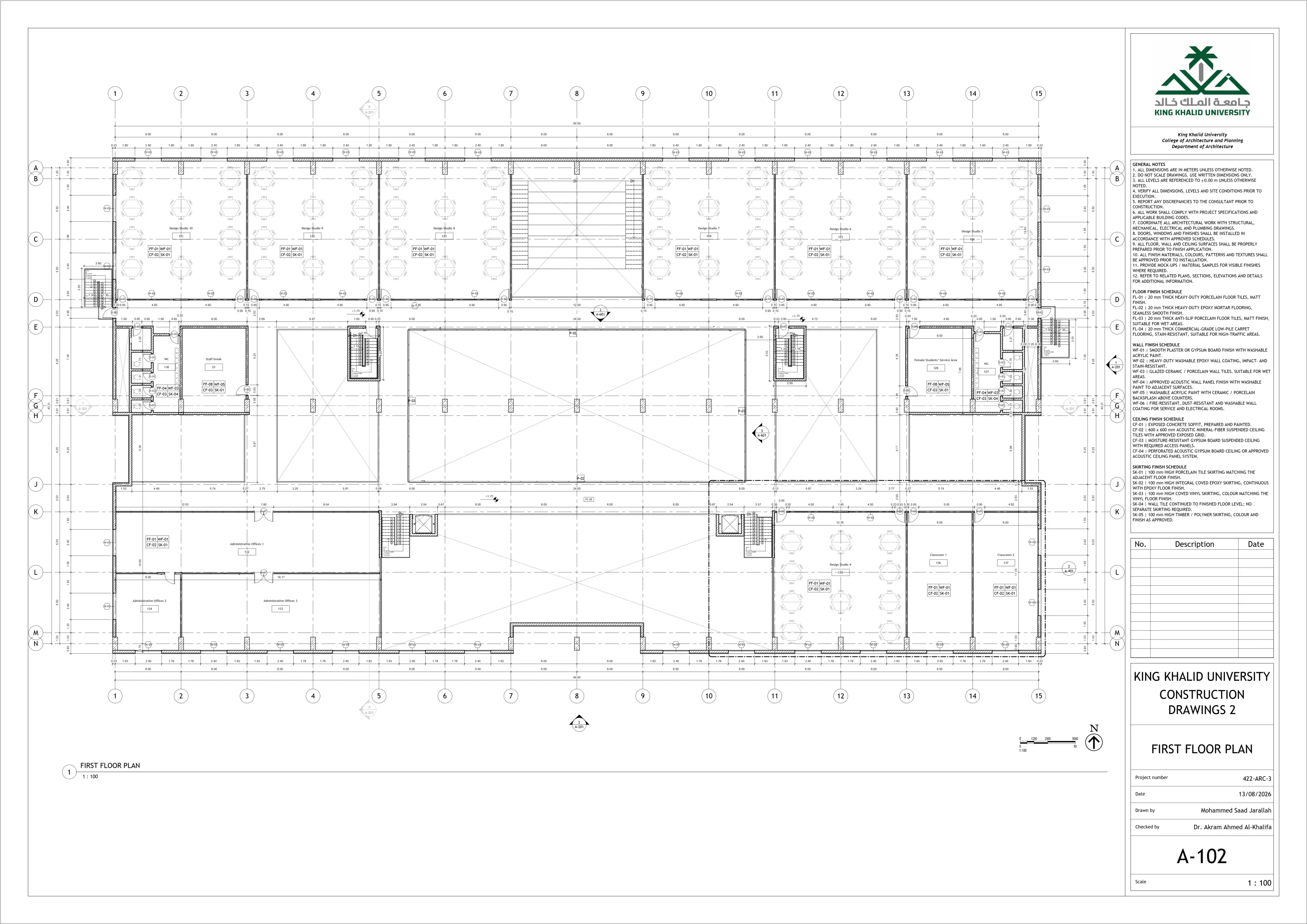

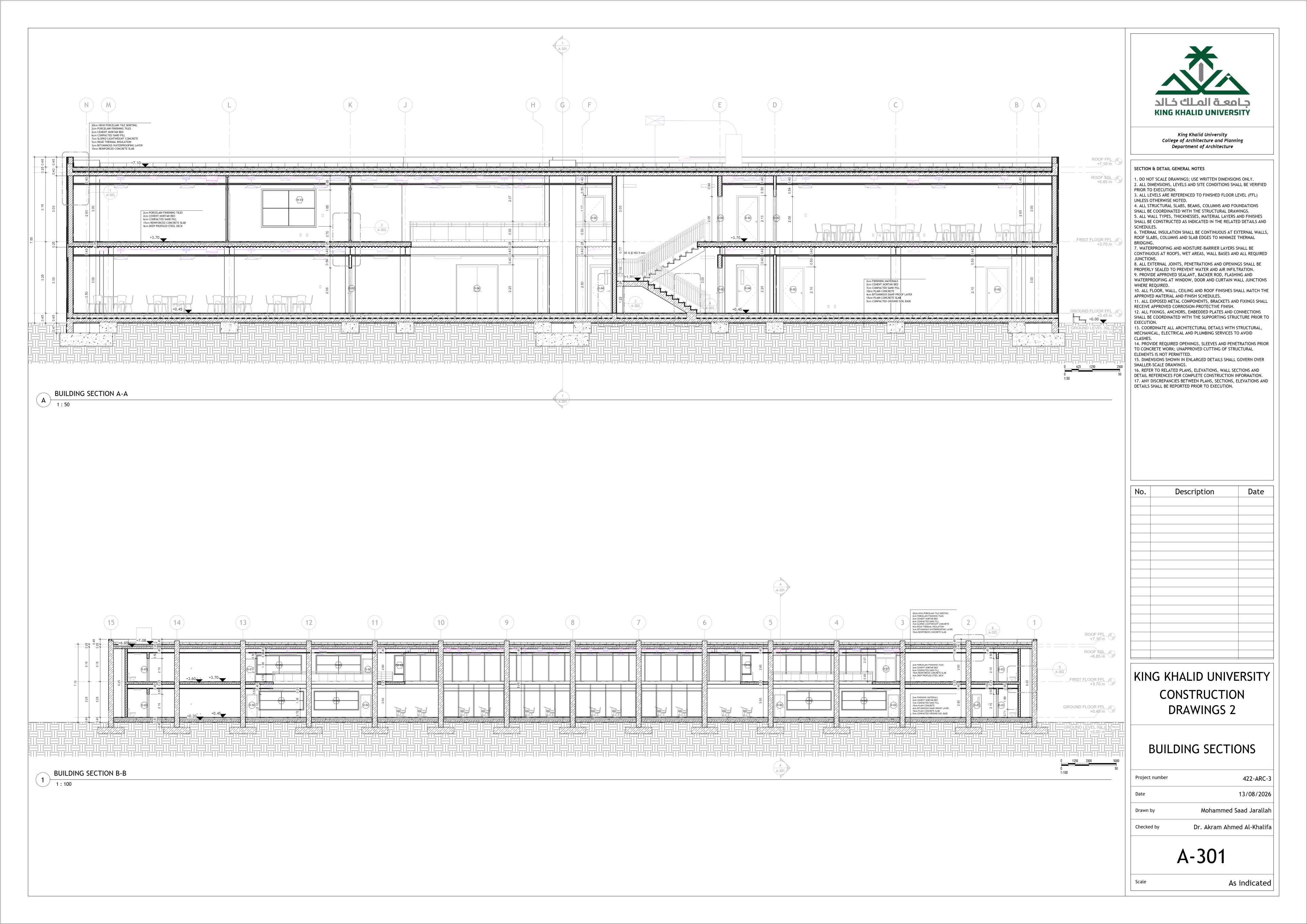

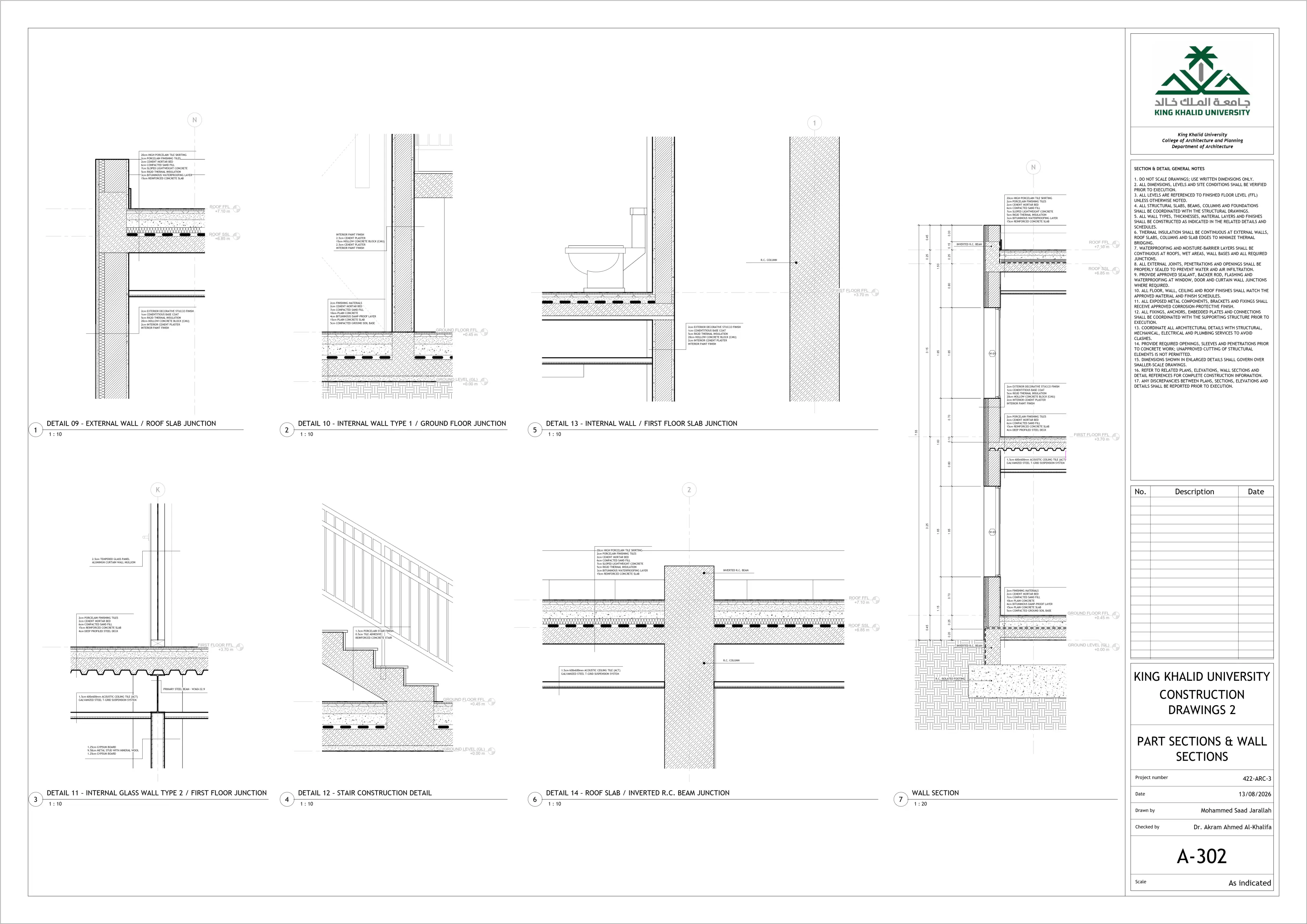

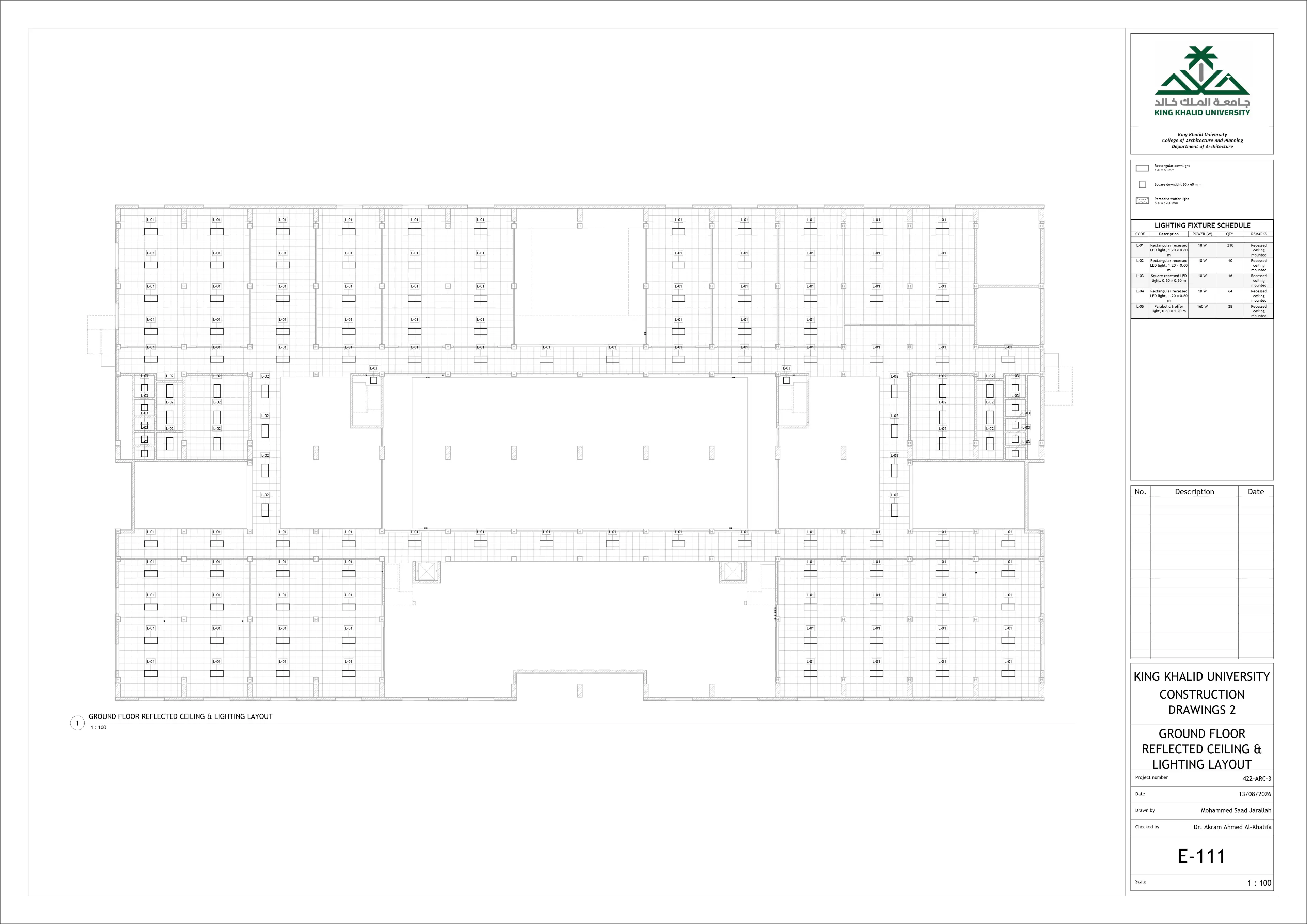

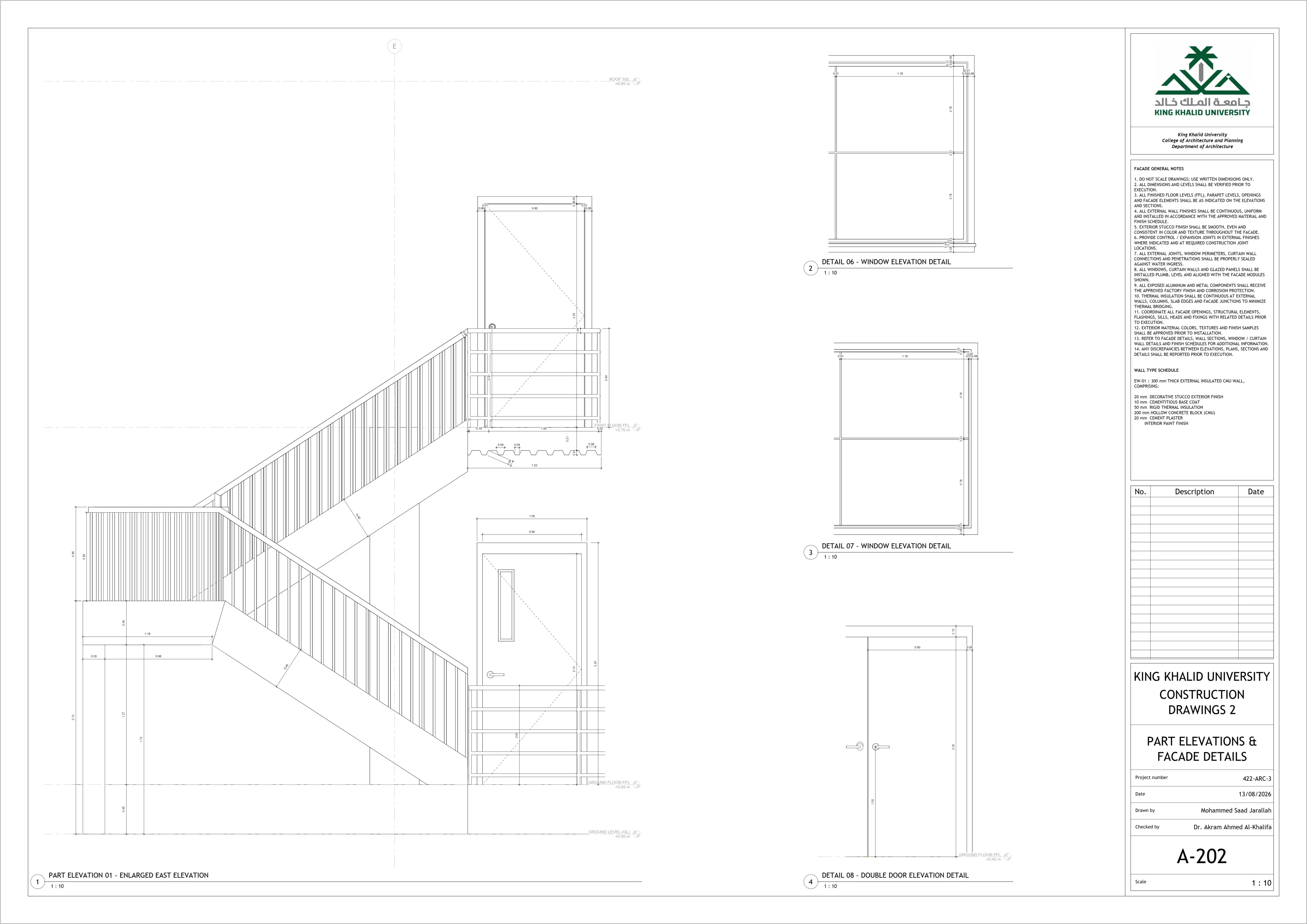

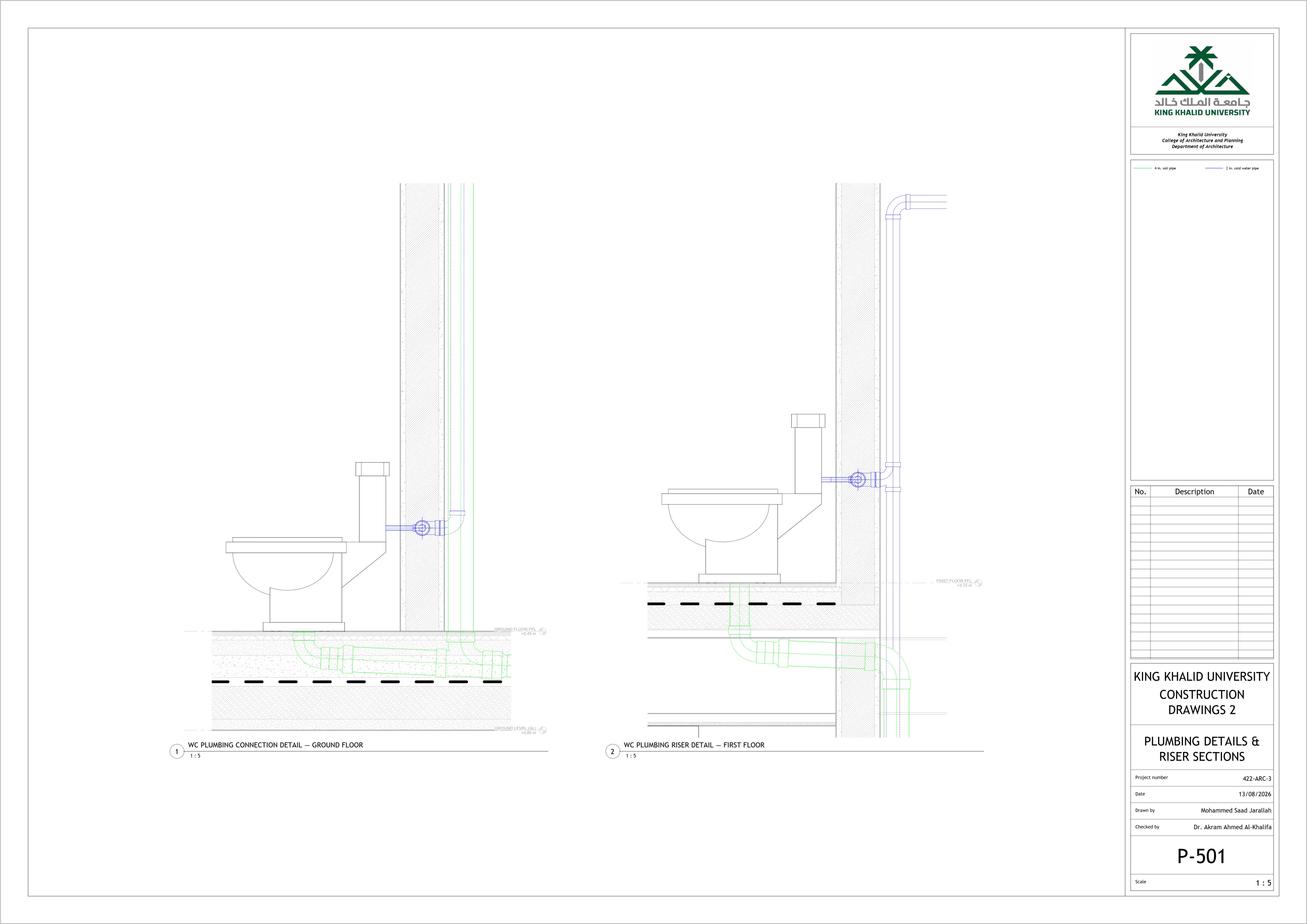

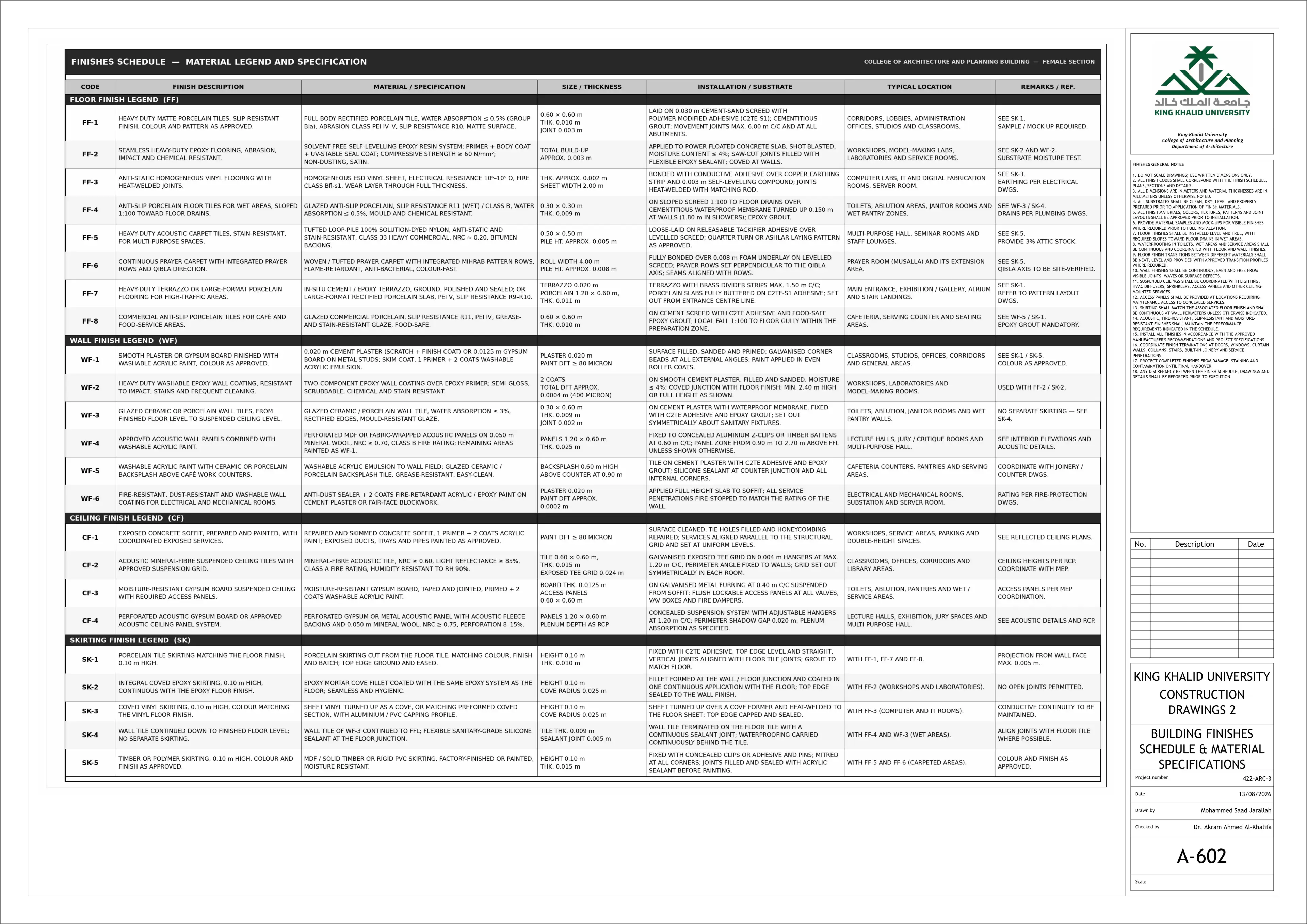

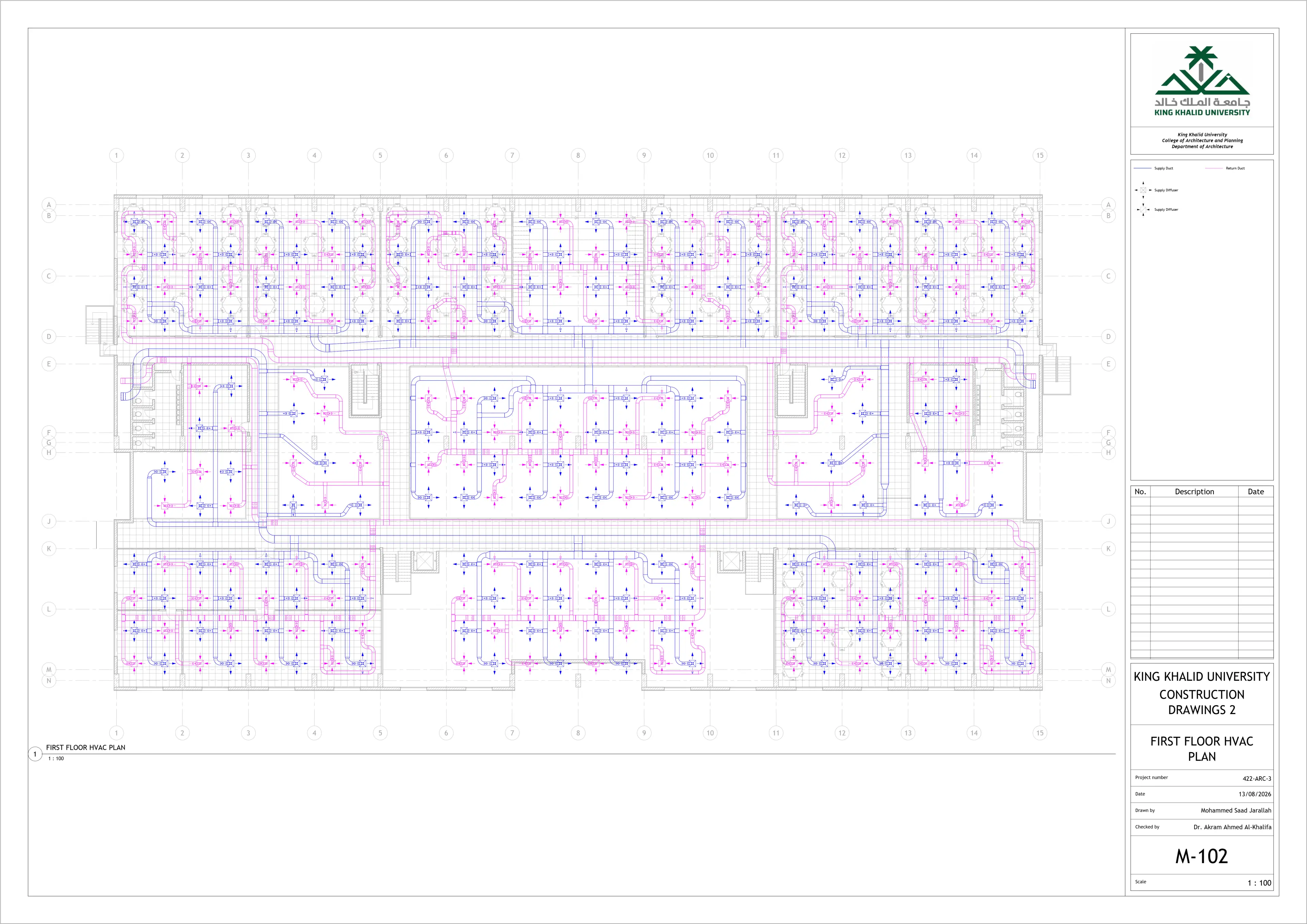

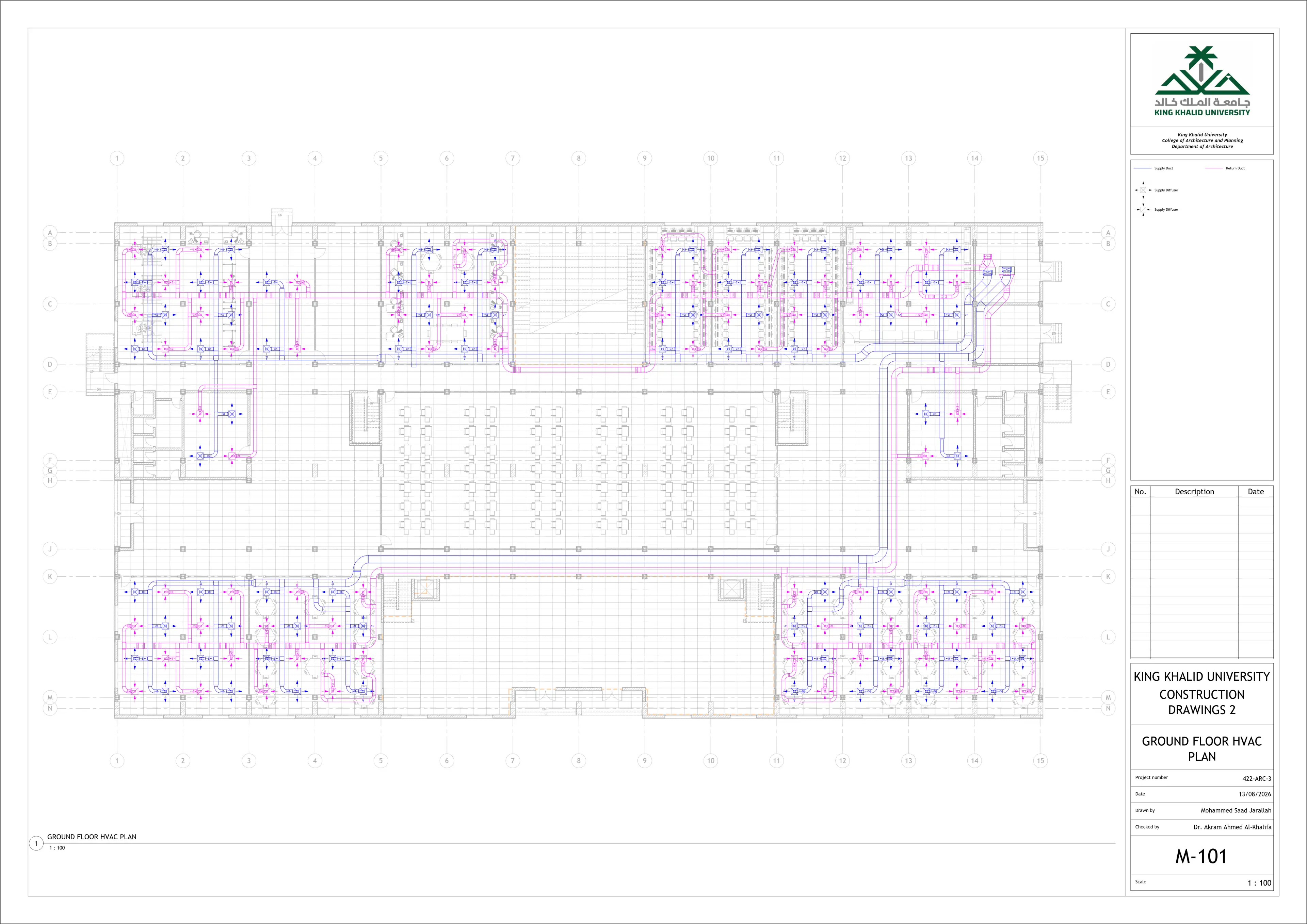

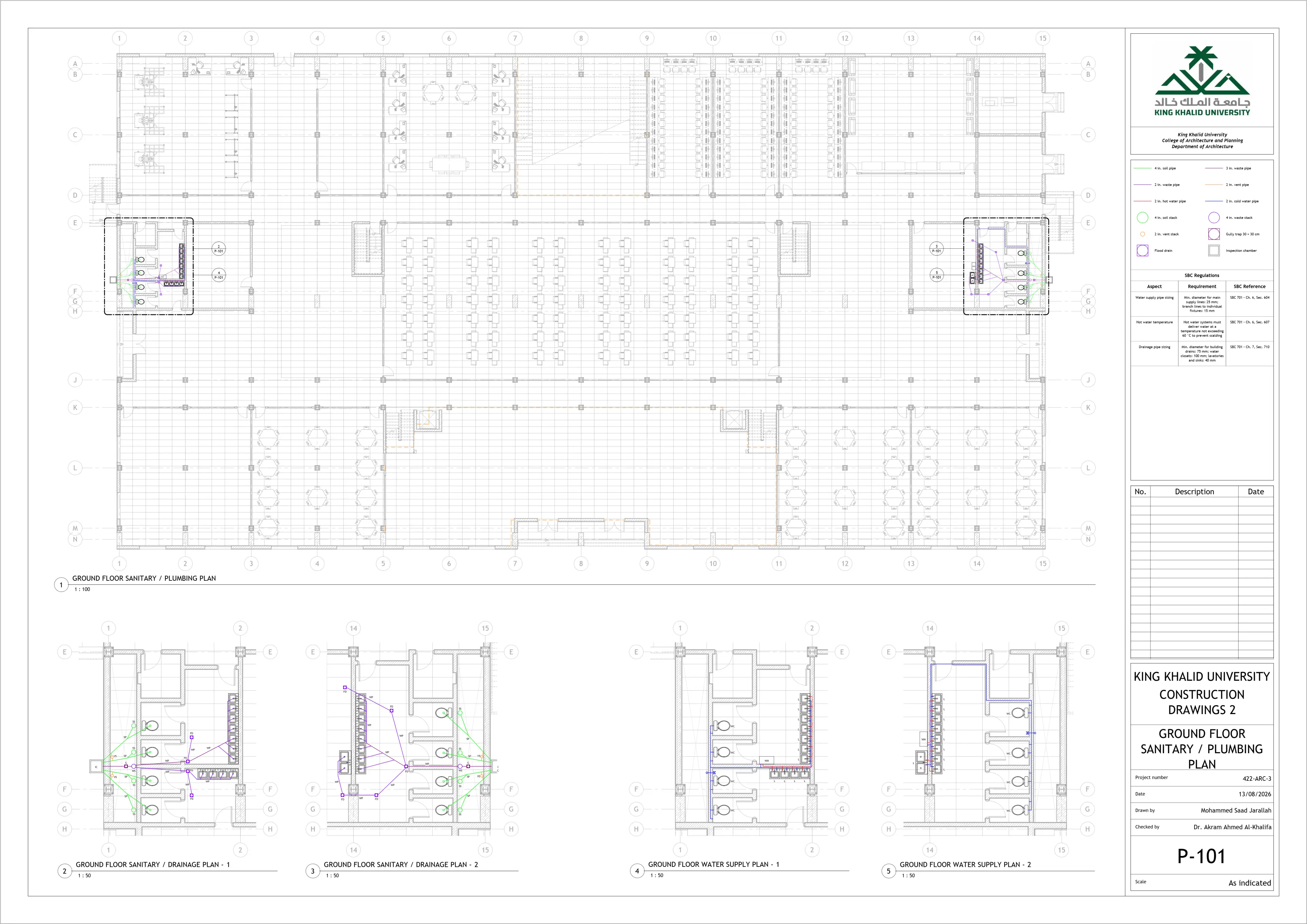

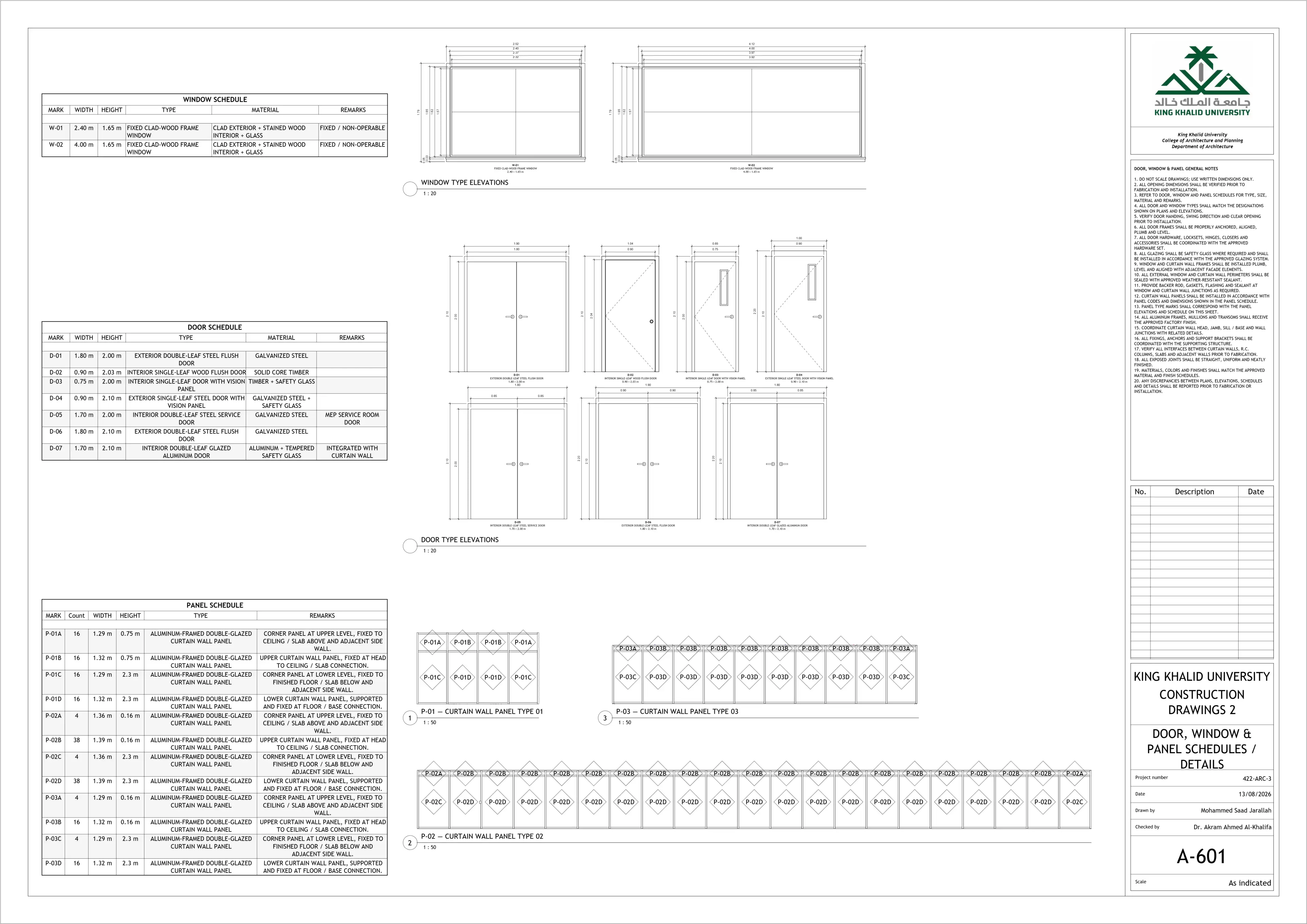

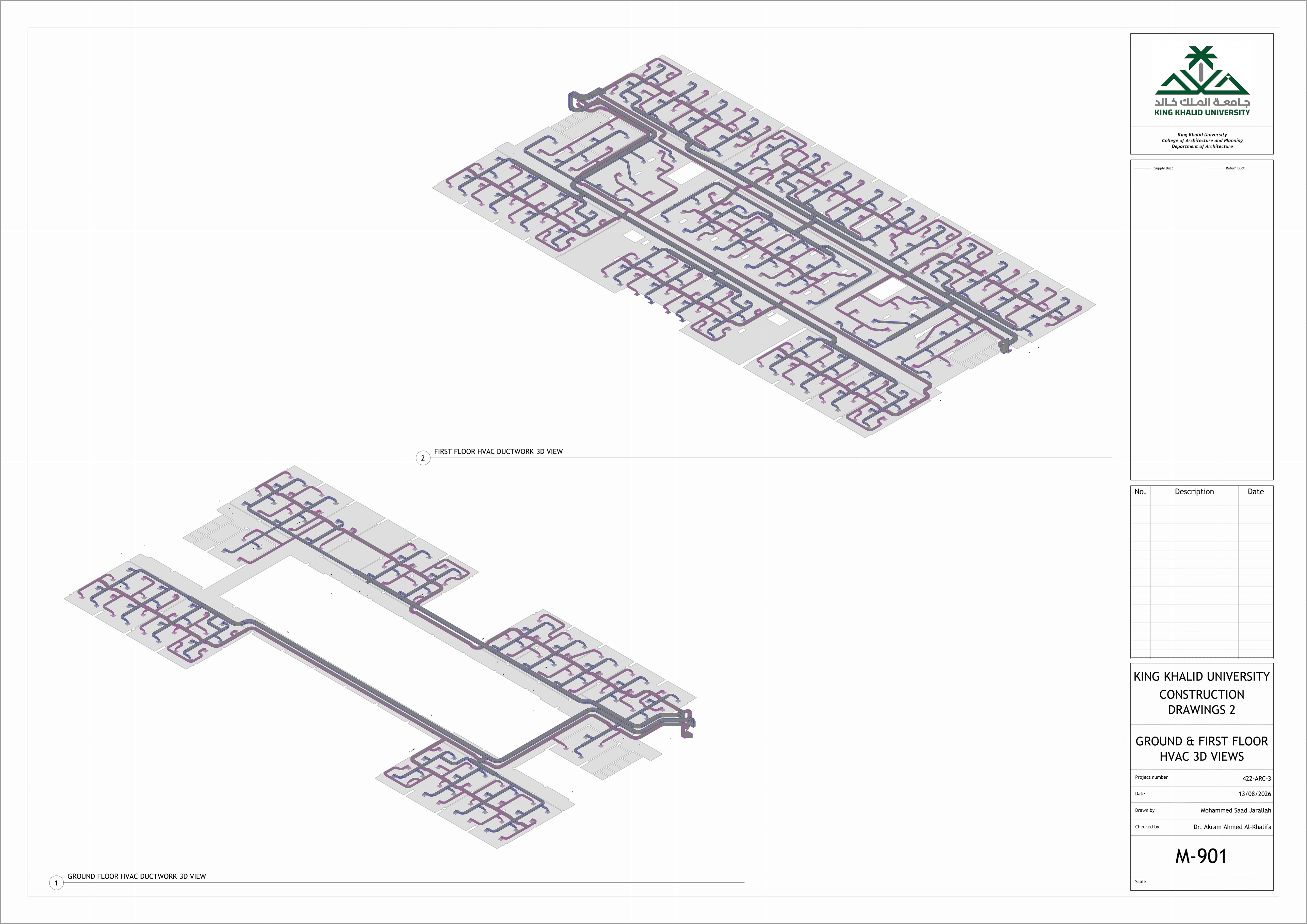

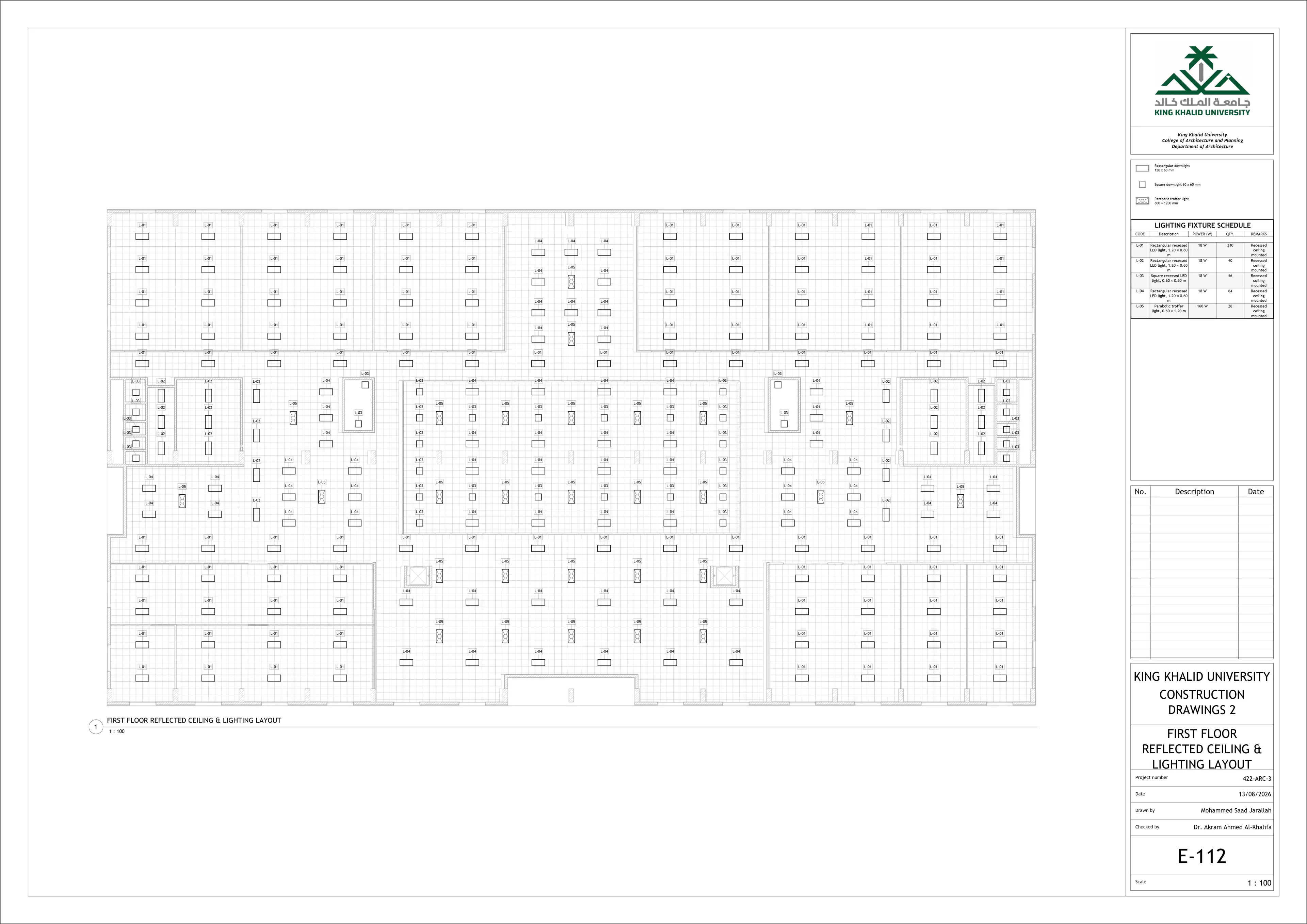

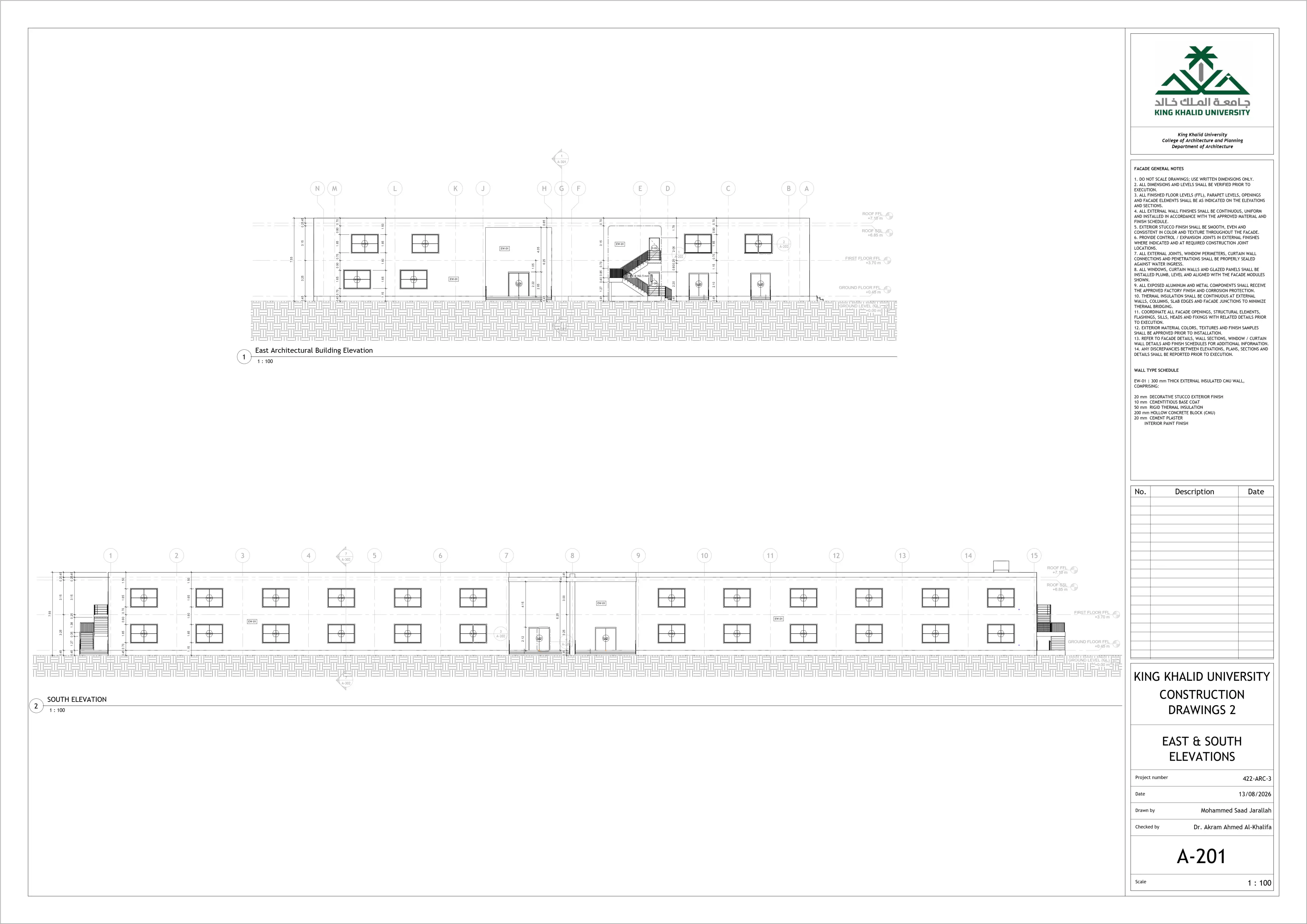

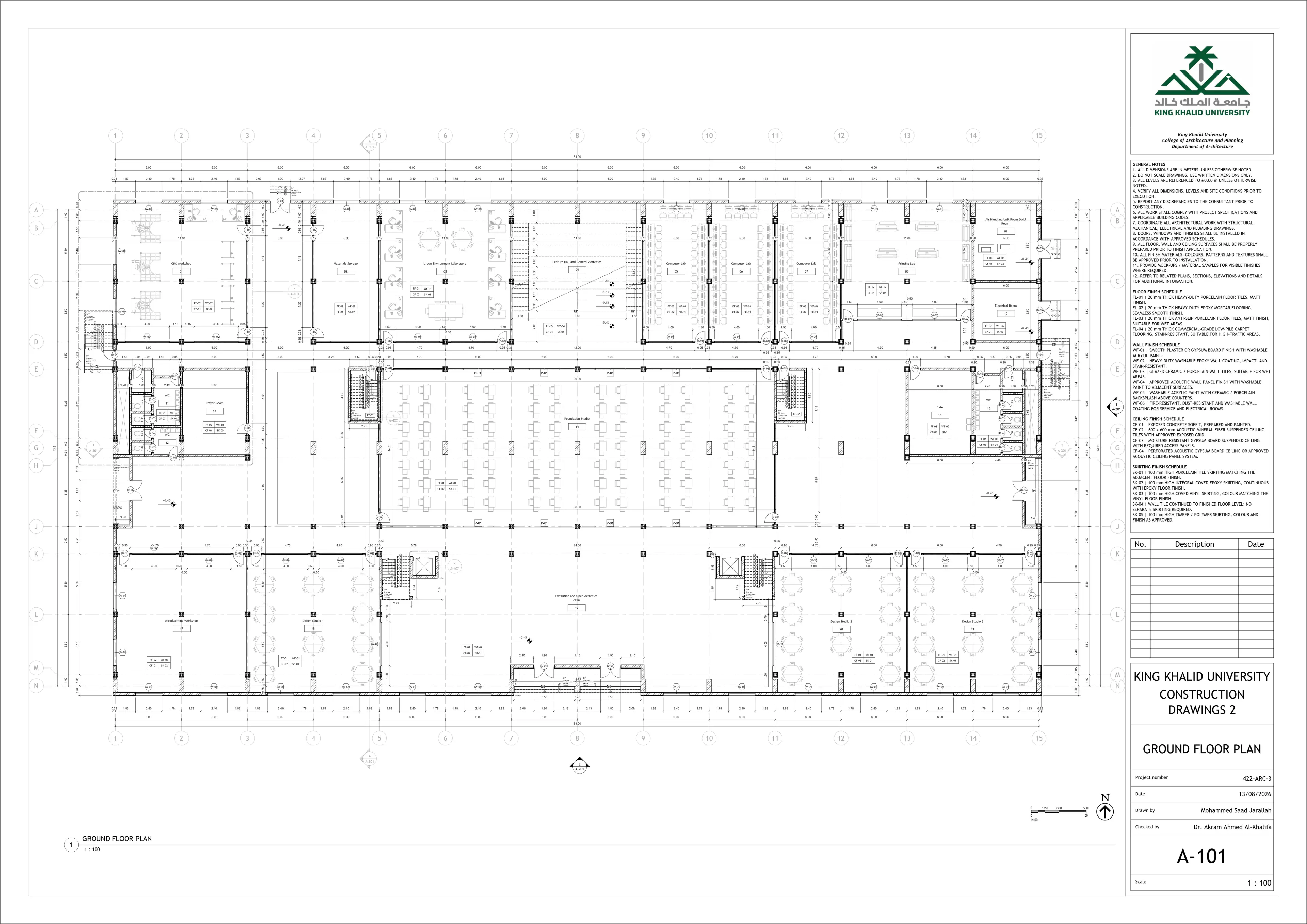

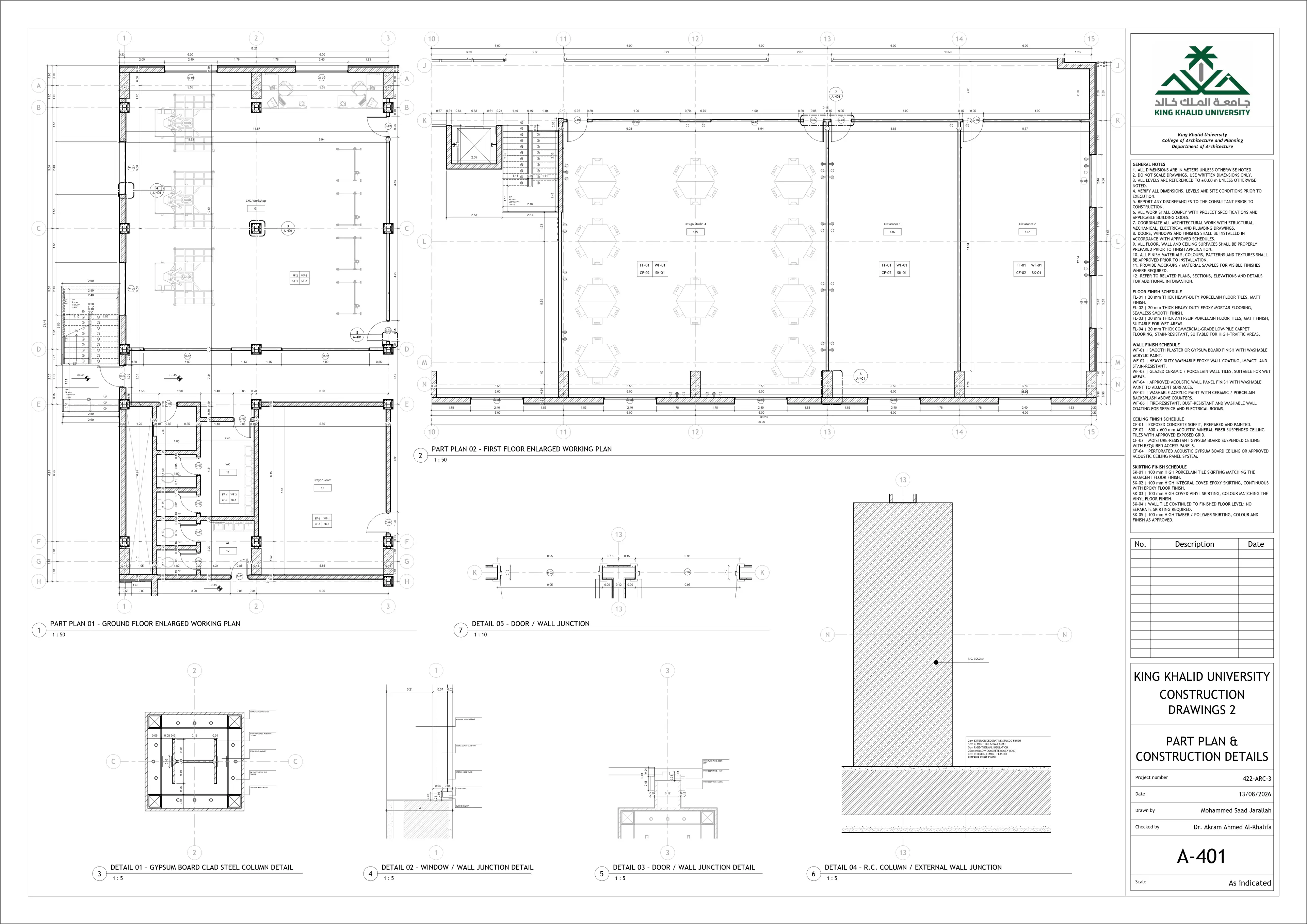

A comprehensive construction documentation package developed for an academic institutional building. The work covers architectural plans, elevations, sections, enlarged working drawings, construction details, door and window schedules, curtain wall documentation, material and finish specifications, and coordinated HVAC, plumbing, and electrical systems.

The project focuses on translating architectural design into coordinated technical documentation through BIM-based workflows, detailed component development, construction detailing, and multidisciplinary coordination.
